The Copper Envelope
AKA: Heating Copper

Click for full size image
Click for full size image

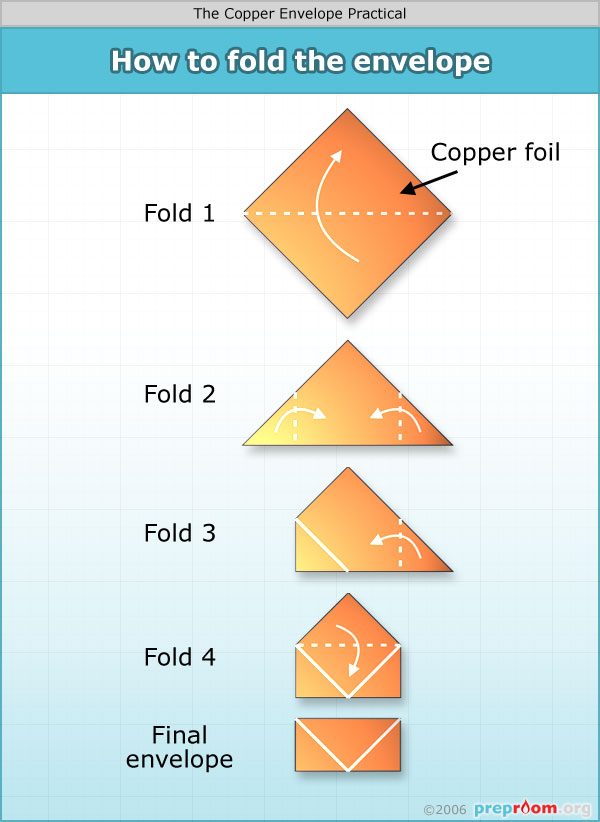

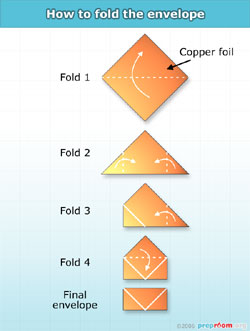

Fig 1: How to fold the envelope
Fig 1

Summary

An envelope shape is made from copper foil and heated.

Operation

When directly heated, copper will form a layer of copper oxide on its surface. When left in air, the copper reacts with oxygen very slowly. By folding an envelope shape from the copper foil we can make sure the inside is inaccessible to air. When heated and unfolded, the inside and outside can be compared. The outside surface should show a layer of copper oxide whereas the inside should remain relatively unchanged.

Equipment required (per set):

  • Copper foil (no more than 5cm²)
  • Bunsen burner
  • Tongs
  • Heatproof mat
The copper foil square should be folded into an envelope shape (see Fig 1), held in the tongs and directly heated in the blue Bunsen flame for five minutes or so.

The copper envelope should be left to cool for several minutes on a heatproof mat.

When cool, the envelope can be opened and the surfaces compared.

Safety

 Wear eye protectionWear eye protection.

Metal foils when cut may have sharp edges.

The contents of this page are for information only. Please refer to CLEAPSS or ASE safety advice and/or publications before undertaking any preparation, practical experiment or using any equipment featured on this site or any other.
