Motor Kits
AKA: Westminster Motor Kit

Click for full size image
Click for full size image

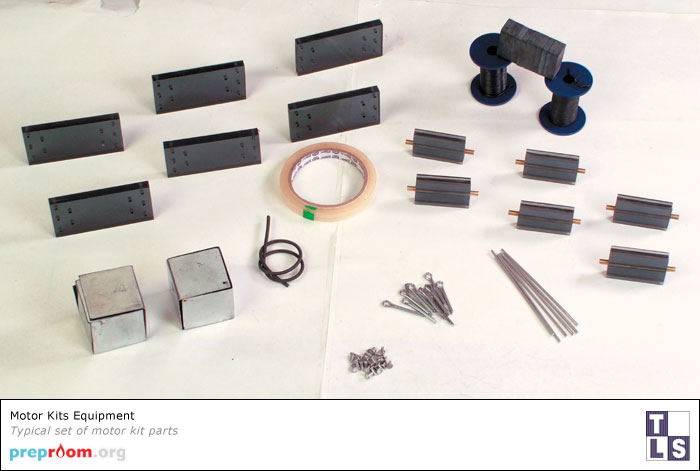

Fig 1: Typical set of motor kit parts
Fig 1

Summary

A set of materials which enable pupils to make their own simple motors.

Operation

Westminster motor kits have been around for many years and have proven to be over the years an effective way of teaching the motor principle as well as being a fun practical for pupils.

Sets vary in size but usually consist of wooden blocks, yokes, rivets, magnets, wire, axels and bands. When constructed, they should be connected to a low voltage supply or batteries according to manufacturer’s guidelines.

The kits can be notoriously fiddly to set up and so require a bit of preparation beforehand. It is advisable to set one up perfectly for the teacher to use as a demonstration model and for the pupils to use as a guide. A bit of trial and error is usually enough to get these motors running. Full instructions are usually supplied with these kits. These could be copied and added to the kit or made into worksheets to accompany the lesson.

Newer ‘Hodson’ motor kits are now available through suppliers which work in exactly the same way, the only difference being appearance and that these kits use moulded plastic barrels.

Pieces will ultimately get broken and go walkabout so keeping them in a segmented tray and counting pieces in and out will increase the life of parts. Some lab suppliers stock an array of spares.

Tips:

  • Make sure the slab or ceramic magnets are the correct way round. Put two together so they stick and then separate without turning them. Stick one each side of the yoke.
  • Use solid core insulated wire to ensure good contact between the brushes and commutator.
  • Don’t connect to the supply for too long as this may melt the plastic coating on the wire.
  • Keep the wrapped wire neat and taut. This will ensure the barrel is balanced as it turns.

Safety

 CautionThe contents of this page are for information only. Please refer to CLEAPSS or ASE safety advice and/or publications before undertaking any preparation, practical experiment or using any equipment featured on this site or any other.
