Gold Leaf Electroscope
AKA: Simple Electrometer

Click for full size image
Click for full size image

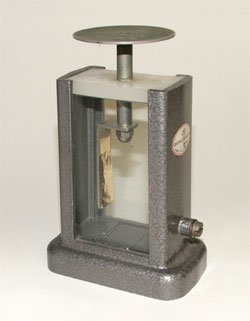

Fig 1: Single leaf electroscope
Fig 1
Fig 2
Fig 3

Summary

A simple device using gold leaf to indicate electric charge.

Operation

Many styles of gold leaf electroscopes exist but all use the same principle. Some have a single strip of leaf hanging against a metal sheet. Some have two pieces of leaf which separate when charged and some have a more rigid metal strip that tilts when charged, one end pointing to a scale. Most are enclosed in some way as to not be affected by draughts, all have a plate or sphere on top where the charged material is brought to.

When a charged material (a polycarbonate rod for example) is brought near the top of an electroscope, the charge travels down the metal part (electrode) and charges the gold leaf. In the case of the two leaf electroscope, both leaves become equally charged and repel each other. In the case of the single leaf, it repels against the metal sheet which also carries the same charge.

Charge can be transferred to the electroscope by ‘wiping’ a charged rod or balloon on the top plate. The electroscope is actually measuring the potential difference between the earth and the plate.

Because of the cost of real gold leaf, schools tend to use ‘Dutch Metal’, an alloy of 80% copper and 20% zinc. It can be purchased in leaves by the book from many suppliers.

If care is taken over the electroscope, the leaf will not have to be replaced for a long time, a small amount of sticky tape is usually enough to secure a small strip when needs be.

Safety

 CautionThe contents of this page are for information only. Please refer to CLEAPSS or ASE safety advice and/or publications before undertaking any preparation, practical experiment or using any equipment featured on this site or any other.

Notes

The gold leaf electroscope was invented in 1786 by Abraham Bennett.
